PROJECT DESCRIPTION

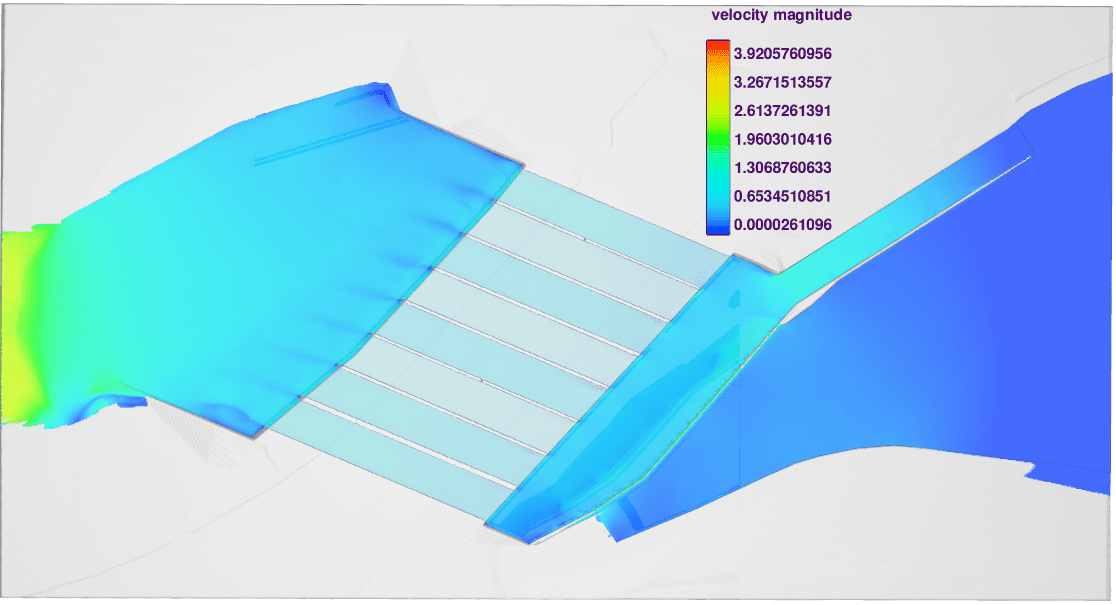

Burchills were engaged by Toowoomba Regional Council (TRC) to undertake a detailed design for a proposed culvert upgrade at Perth Street, Toowoomba. WMS were asked to apply a CFD assessment of the performance of the structure under ARR2019 peak flow to assess the immunity during a 1% AEP event. WMS utilised the FLOW3D software to represent the flow paths and eddies which are unaccounted or averaged during a conventional 2-D TUFLOW model.
BENEFIT TO THE CLIENT / COMMUNITY

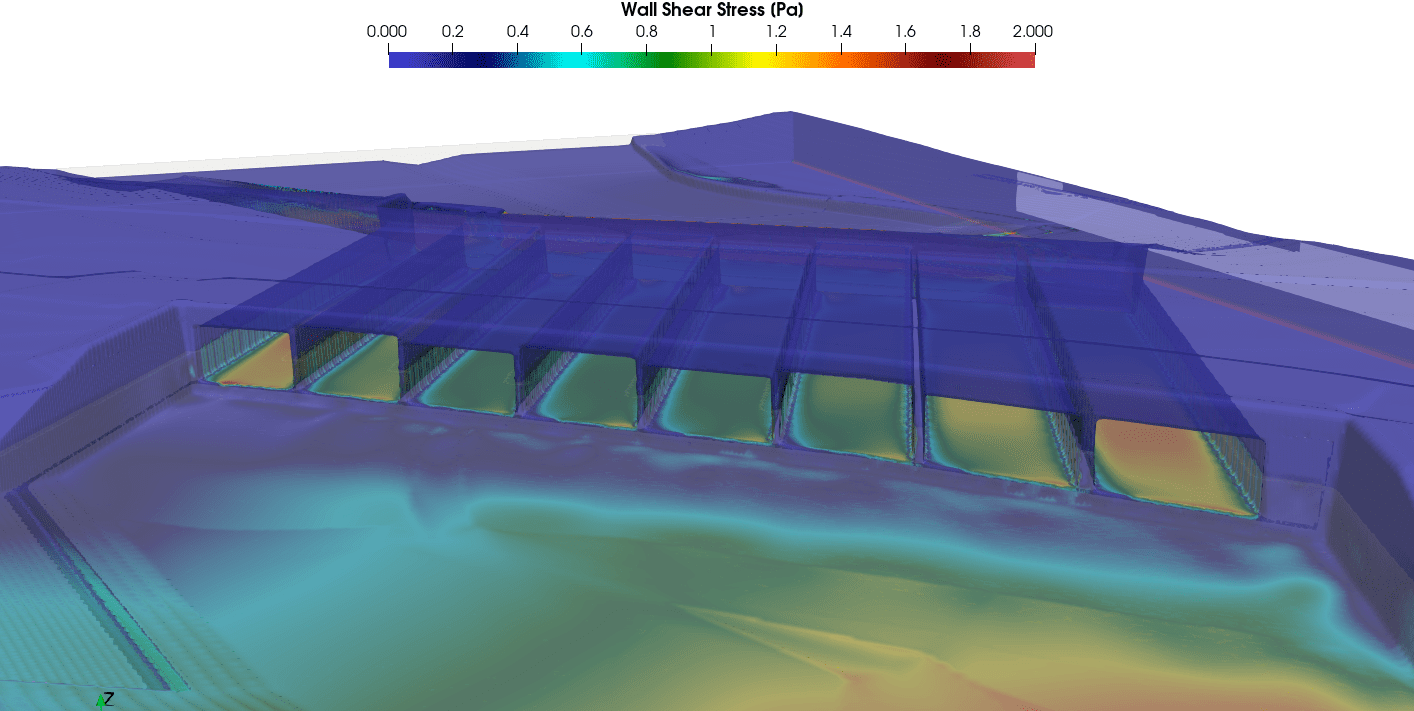

Analysis of the peak flood event without the simplification of a 2D model allowed Burchills to provide an enhanced and confident design assessment for TRC. Given the complexity of the geometry and the necessity to ensure 1% immunity, a CFD model is the only appropriate technique to provide an accurate representation of the domain and flow paths within it. Burchills were able to quantify the exact upstream conditions which would cause overtopping of the culvert and bridge system and iteratively modify the design to ensure immunity from the given ARR2019 peak flows. Burchills could then assess caveats of the design, including orientation and areas of high shear stresses due to increased flow conditions.
The CFD assessment was successful, allowing Burchills to achieve an approved design with total confidence and permit the start of construction.
Our capabilities include:
- 1:1 Scale 3-D modelling of system and subsystems;
- Integrated and simulated weir and nested geometries;
- Expansive data visualization;
- Around the clock simulation runs.
WMS is able to produce 3D simulations of up to 1km squared areas and simulation times of upwards of 1 hour long. We are continuously pushing the limits of our Flow-3D Hydro license for the benefit of our clients. Visualisation specifics include:
Air entrainment and eddie visualisation;
- Flow paths and vectors;
- Time varying variables;
- Scour and shear analysis of river-beds;
- Velocity, turbulence and kinetic energy;
- Sediment movement;
- Air entrainment and eddie visualisation;
WMS Engineering is a specialist engineering consultancy firm providing high quality, tailored CFD solutions to hydraulic design and water resource problems. WMS prides itself on our ability to produce the most comprehensive and precise fluid flow models.
Our mission is to continuously grow our CFD capabilities and stay at the forefront of this expanding new form of industry standard.
